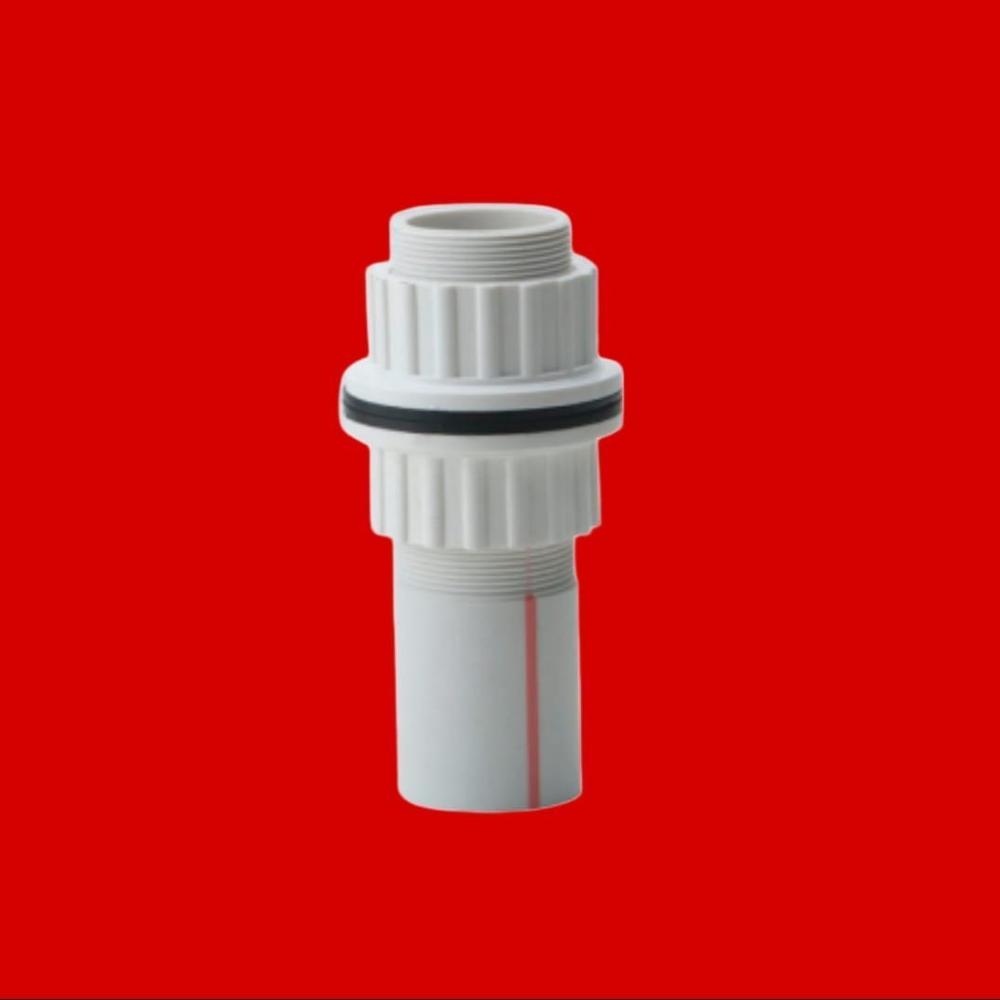

TANK CONNECTOR

Product Description

• Pipes - 1/2" to 6"
• Fittings - 1/2" to 4"

  Standard

• Pipes - Schedule 40 & 80 - As per ASTM D-1785 (Plain Ended).
• Fittings - Schedule 40 as per ASTM D-2466, Schedule 80 as per ASTM D-2467

  Applications (Operating temperature up to 45C only)

• Indoor and outdoor use of cold water application
• Residential complexes, commercial buildings, public utilities, swimming pools
• RO and DM water plants
• For concealed, down take & terrace looping

  Note

• Not for use with compressed aire and gases.
• Pressure rating of UPVC pipes & fittings is temperature related.
• Derating factor should be applied during designing & operation for higher temperature application. For detailed data refer IS-4985
• Installation of UPVC pipelines should be done is accordance with IS-7634(Part-3)
• Flow velocity in the pipeline should not be greater than 1.5meter/sec
• For threaded pipes & fittings the working pressure at 23C should be considered as 50% of rated.

  Jointing Method:

• Solvent joint & Threaded joint

  Major Advantages:

• Lead-free material ensures safe drinking water.
• Exceptional corrosion resistance ensures constant flow over lifetime.
• Light weight but strong.
• Self-extinguishging. Does not support combustion.
• High impact resistance, ensures high quality performance for lower temperatures.
• Fast and easy installation, Saves labour.
• Long Life.
